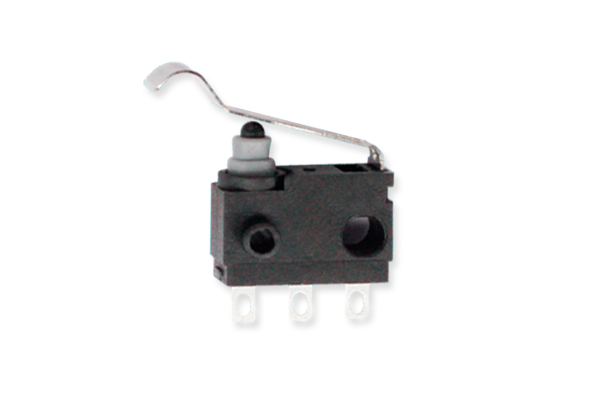

G306-150S03A1
| Description |
| Name：G306-150S03A1 |
| Feature：waterproof,dustproof,three terminals |
| Ratings：12V DC 0.1A,5V DC 50uA |
| Electrical Life：300,000 cycles |
| Mechanical Life：300,000 cycles |
| Operating Temperature：-40℃~85℃ |
| Safety Certificate：UL,cUL,ENEC & CQC |

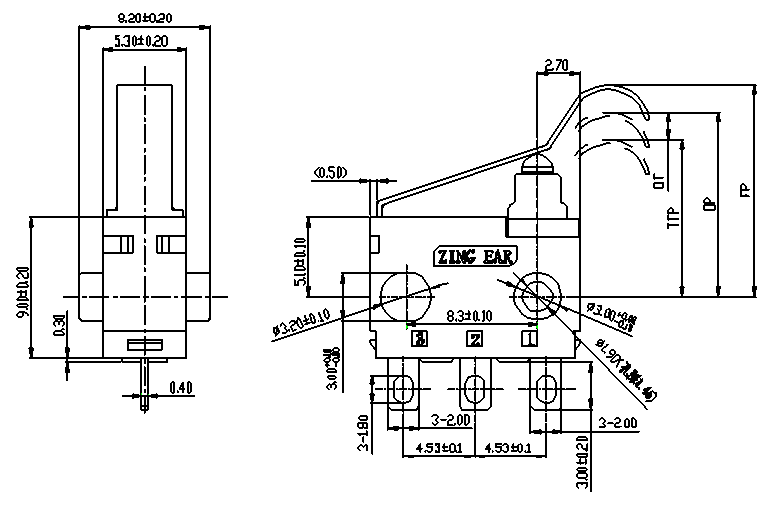

Drawing
